G-Class Ozone Systems

The G-Class CD-2/5/7 systems generate 2-7 grams of ozone per hour at 2.5-3.0% by weight and the G-Class CD-15/25/45 systems generate 15-45 grams of ozone per hour at 3-4% by weight. All operate under vacuum for safety and include integrated DEL Ozone Safety Management Systems.

G-Class systems have configurable feed-gas options (integrated oxygen concentrator system is standard), multiple safety features, self-diagnostic switching and robust construction. Variable ozone output control is optional on all models.



Find your model

Clear
Can't find exactly what you need?

Custom options are available!
Call us today: 888-960-6289

BACK

G-Class Ozone Systems

The G-Class CD-2/5/7 systems generate 2-7 grams of ozone per hour at 2.5-3.0% by weight and the G-Class CD-15/25/45 systems generate 15-45 grams of ozone per hour at 3-4% by weight. All operate under vacuum for safety and include integrated DEL Ozone Safety Management Systems.

G-Class systems have configurable feed-gas options (integrated oxygen concentrator system is standard), multiple safety features, self-diagnostic switching and robust construction. Variable ozone output control is optional on all models.



Features

STANDARD OZONE G-CLASS FEATURES

  • Integrated DEL Ozone Safety Management System
  • Integrated Oxygen Flow Meter
  • Complete Isolation During Shut-Down
  • Automatic Feed-Gas Control Maintains Operational Set Points
  • Powder-coated Steel Enclosures Designed to NEMA-12



CLICK HERE TO LEARN MORE ABOUT OZONE TECHNOLOGY

Specifications
Width

16 in, 24.4 in

Height

24.5 in, 39 in

Depth

11.5 in, 11.8 in

Ozone Requirement (gr/hr)

2 gr/hr, 5 gr/hr, 7 gr/hr, 15 gr/hr, 25 gr/hr, 45 gr/hr

Voltage

120 volt, 60 Hz, 230 volt, 50 Hz

Enclosure Type

Stainless Steel, Powder-Coated Steel

Export Option

Domestic, Export

Ozone Output Control

No Output Control, Proportionally Controlled Output, Variable Output

Oxygen Supply

Air-Prep, No Air-Prep

Technical Details

G-Class systems include:

  • Configurable feed-gas options (integrated oxygen concentrator system is standard)
  • Multiple safety features
  • Self-diagnostic switching

All G-Class systems operate under vacuum for safety and include integrated DEL Ozone Safety Management Systems.  Variable ozone output control is optional on all models.

Integrated Fault Protection

  • Pressure Failure
  • Overheating
  • Vacuum Loss
  • Water Backflow

Product Design

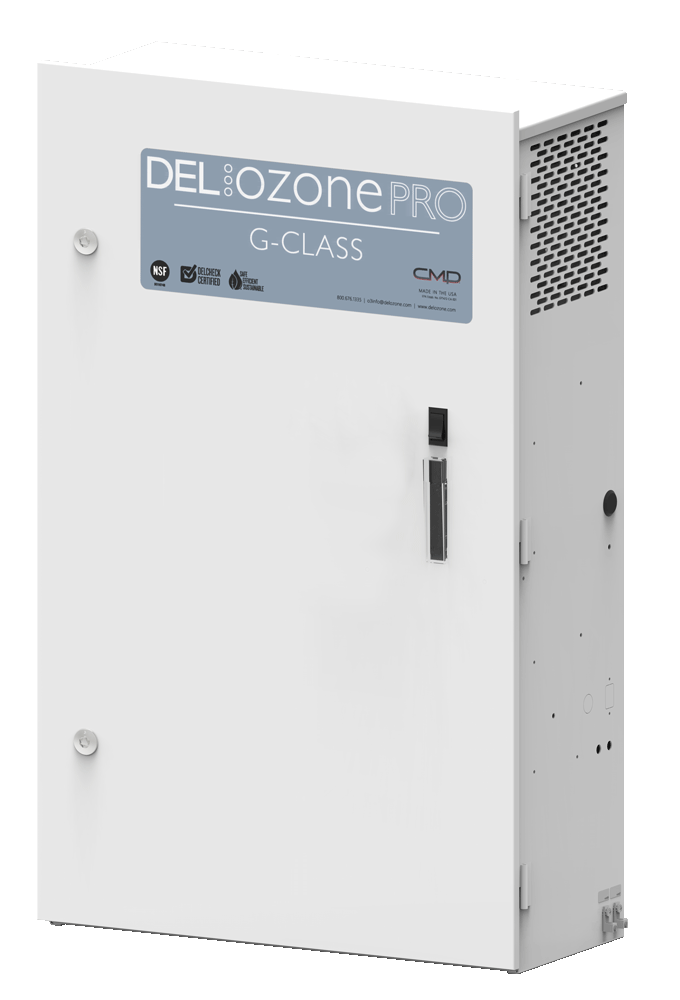

G-CLASS – CD 2/5/7

These first level G-Class systems generate up to 7 grams of ozone per hour at 2.5-3.0% by weight.

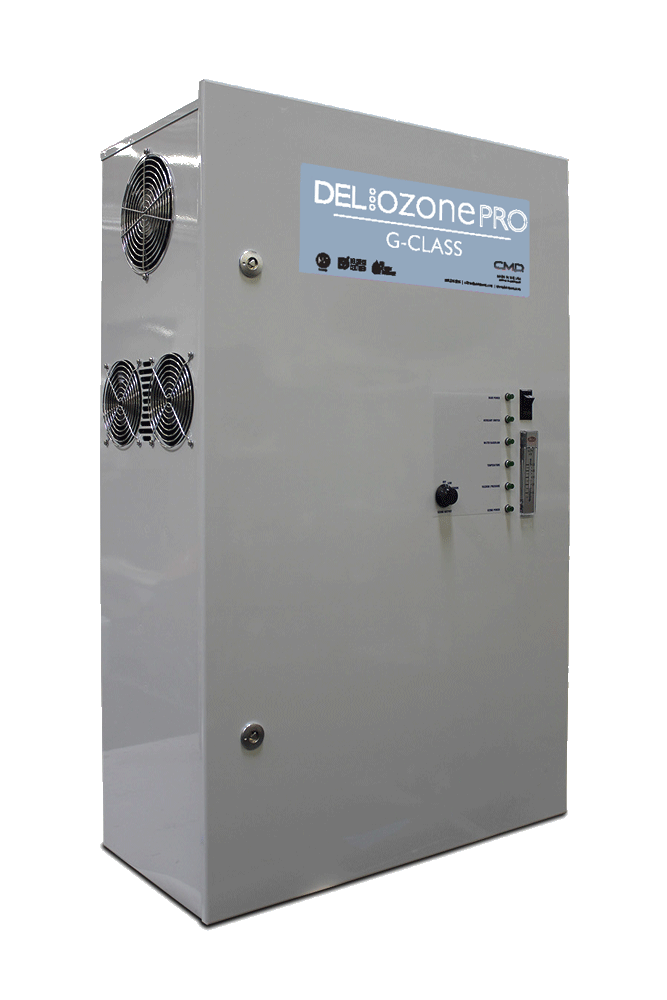

G-CLASS – CD 15/25/45

Higher powered G-Class systems generate up to 45 grams of ozone per hour at 3-4% by weight.

G-CLASS PLUS (HECD) – CD 65/130

Available in 65 or 130 grams of ozone per hour at 5-6% by weight using low-maintenance 1.6 kHz cold cathode gas-filled corona discharge ozone cells.
