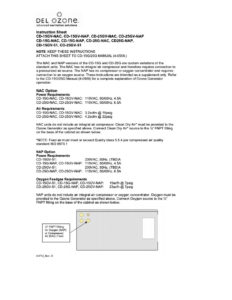

To be used in conjunction with the G-Class Manual System 15 and 25 gr/hr.
NAC Option
Power Requirements
CD-15G-NAC, CD-15GV-NAC: 115VAC, 50/60Hz, 4.5A
CD-25G-NAC, CD-25GV-NAC: 115VAC, 50/60Hz, 6.5A
Air Requirements
CD-15G-NAC, CD-15GV-NAC: 3.2scfm @ 18psig
CD-25G-NAC, CD-25GV-NAC: 4.2scfm @ 22psig
NAC units do not include an integral air compressor. Clean Dry Air* must be provided to the Ozone Generator as specified above. Connect Clean Dry Air* source to the ¼” FNPT fitting on the base of the cabinet.
*NOTE: Feed air must meet or exceed Quality class 5.6.4 per compressed air quality standard ISO 8573.1
NAP Option
Power Requirements
CD-15GV-51: 230VAC, 50Hz, (TBD)A
CD-15G-NAP, CD-15GV-NAP: 115VAC, 50/60Hz, 4.5A
CD-25GV-51: 230VAC, 50Hz, (TBD)A
CD-25G-NAP, CD-25GV-NAP: 115VAC, 50/60Hz, 6.5A
Oxygen Feedgas Requirements CD-15GV-51, CD-15G-NAP, CD-15GV-NAP: 15scfh @ 7psig CD-25GV-51, CD-25G-NAP, CD-25GV-NAP: 23scfh @ 7psig NAP units do not include an integral air compressor or oxygen concentrator. Oxygen must be provided to the Ozone Generator as specified above. Connect Oxygen source to the ¼” FNPT fitting on the base of the cabinet as shown below.
