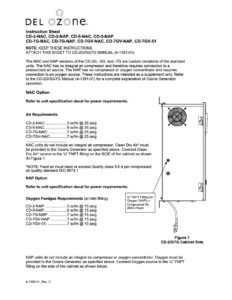

To be used in conjunction with the G-Class Manual System 2, 5 and 7 gr/hr.
NAC OPTION
Air Requirements
CD-2-NAC: 3 scfm @ 25 psig
CD-5-NAC: 6 scfm @ 25 psig
CD-7G-NAC: 7 scfm @ 25 psig
CD-7GV-NAC: 7 scfm @ 25 psig
NAC units do not include an integral air compressor. Clean Dry Air* must be provided to the Ozone Generator as specified above. Connect Clean Dry Air* source to the ¼” FNPT fitting on the SIDE of the cabinet.
*NOTE: Feed air must meet or exceed Quality class 5.6.4 per compressed air quality standard ISO 8573.1
NAP Option
Refer to unit specification decal for power requirements.
Oxygen Feedgas Requirements (at inlet fitting)
CD-2-NAP: 3 scfm @ 15 psig
CD-5-NAP: 6 scfm @ 15 psig
CD-7G-NAP: 7 scfm @ 15 psig
CD-7GV-NAP: 7 scfm @ 15 psig
CD-7GV-51: 7 scfm @ 15 psig
