32 Inch CHANNEL DRAINS

Heavy Duty Unblockable VGB Safety Drain Design

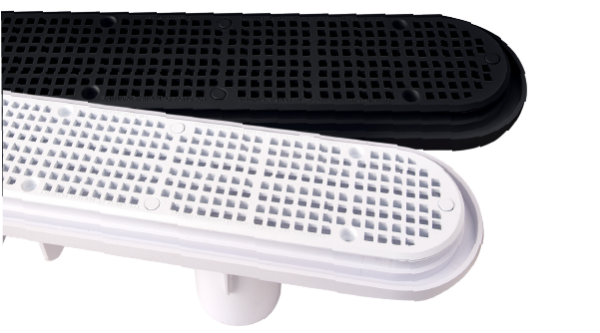

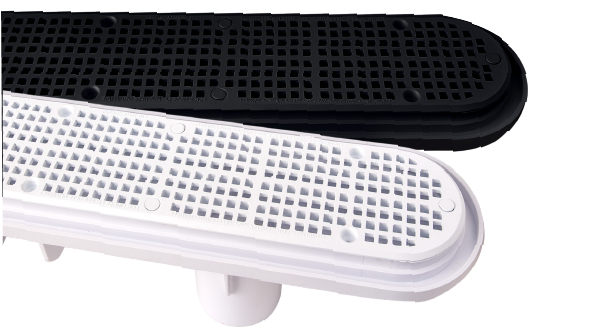

drain FEATUREchannel drains feature 2017

Find your model

Description
Color

Clear

Can't find exactly what you need?

Custom options are available!
Call us today: 888-960-6289

BACK

32 Inch CHANNEL DRAINS

Heavy Duty Unblockable VGB Safety Drain Design

Features

Unblockable Safety Drain Design

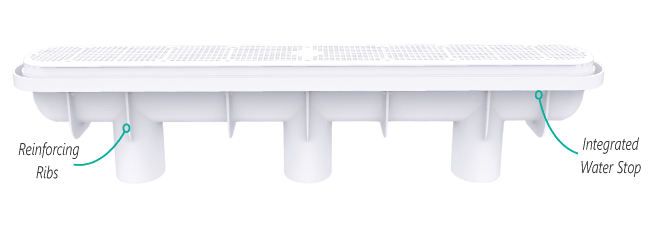

Integrated Water Stop Design Prevents Plaster Separation & Retains Drain Shape
Body Shape Reinforcing Ribs
Finishing Plugs for Unused Screws
Black Drains Include Matching Black Sump
Covers Completely Hide the White Sump
Color Covers Will Retrofit to Competing Channel Drains
Installation Debris Guard Included
IAPMO Listed VGB Suction: Compliant to ANSI/APSP - 16 2011 & CPSC Requirements

Specifications

Description	Drain & Sump, 32" Cover Only, 32" Body Assembly, Cover & Frame, Screw Plug Kit
Color	White, Gray, Black, Dark Gray, Tan, Dark Blue, Light Blue

Technical Details

Technical Info

Single or Multiple Drain Use
Seven Year Life on Cover
Floor or Wall Installation
Three 2″ Socket × 2.5″ Spigot Ports
PVC Sump Body
IAPMO Listed
38.79in²Open Area

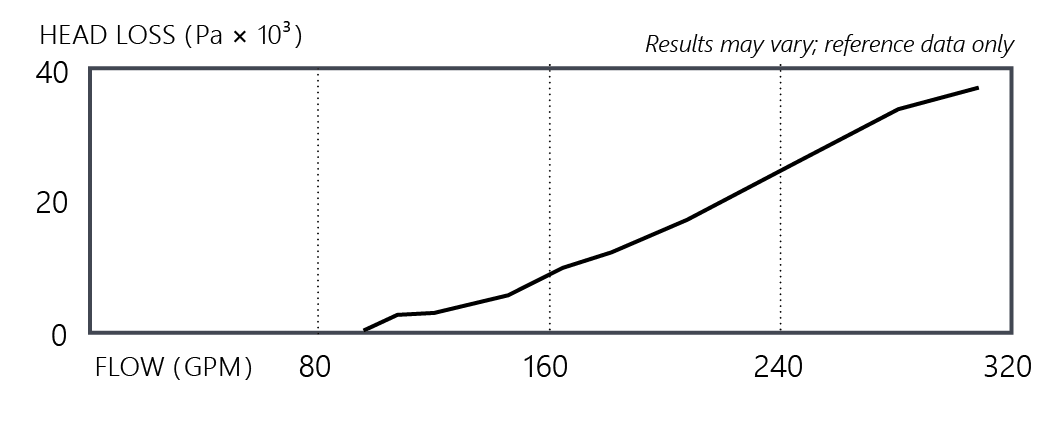

181 GPM at 1.5 FPS

IAPMO LISTED MAX FLOW RATES
PLUMBING	PORTS	FLOOR FLOW RATE	WALL FLOW RATE
2.5″	OUTER	308 GPM	212 GPM
2.5″	CENTER	200 GPM	168 GPM
2″	OUTER	268 GPM	192 GPM
2″	CENTER	184 GPM	176 GPM
FLOW RATE VERIFIED MAY 2011 TO CPSC TEST PROTOCOL

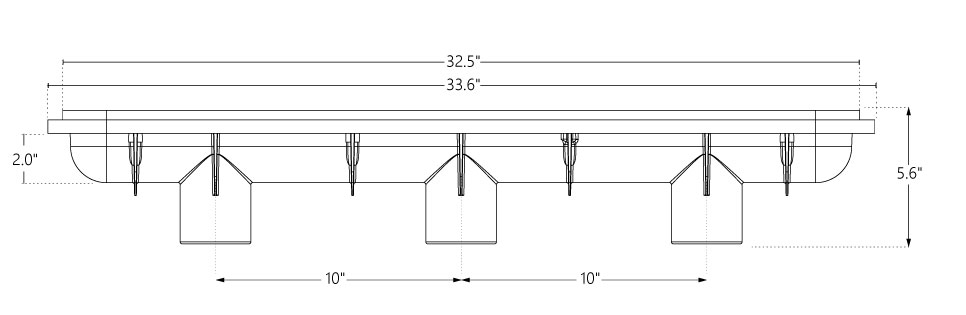

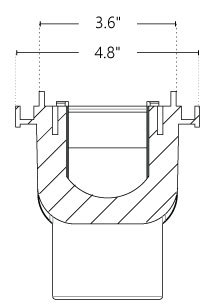

Drawings

Product Design

Resources

CHANNEL DRAIN BROCHURE 32″

32 Inch CHANNEL DRAIN INSTRUCTIONS

CERTIFICATE OF VGB COMPLIANCE
