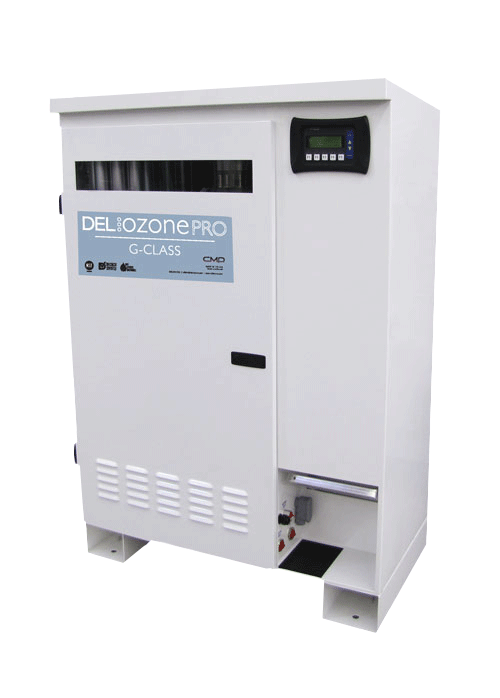

Floor-mounted HECD 65/130 provide 65 or 130 grams of ozone per hour at 5-6% by weight using low-maintenance 1.6 kHz cold cathode gas-filled corona discharge ozone cells. Includes integrated DEL Ozone Safety Management System and PLC to monitor ozone generator, oxygen levels, temperature and other user-controlled variables. The HECD systems also feature digitally controlled variable output.
Custom options are available!
Call us today: 888-960-6289
Floor-mounted HECD 65/130 provide 65 or 130 grams of ozone per hour at 5-6% by weight using low-maintenance 1.6 kHz cold cathode gas-filled corona discharge ozone cells. Includes integrated DEL Ozone Safety Management System and PLC to monitor ozone generator, oxygen levels, temperature and other user-controlled variables. The HECD systems also feature digitally controlled variable output.
HECD-65, HECD-65-50, HECD-130, HECD-130-03
| Width | 36 in |
|---|---|
| Height | 52 in |
| Depth | 20 in |
| Ozone Requirement (gr/hr) | 65 gr/hr, 130 gr/hr |
| Voltage | 230 volt |
| Hertz | 50 Hz, 60 Hz |
| Enclosure Type | Powder-Coated Steel |
| Export Option | Domestic, Export |
| Ozone Output Control | Variable Output |
| PLC Control | Yes |
