BACK

DEL AOP PRO

Del AOP Pro Advanced Oxidation Process (AOP) Systems provide enhanced oxidation/disinfection capability by combining Ozone and UV-C to form Hydroxyl Radicals. The optimized Ozone/UV-C ratio results in Hydroxyl Radical creation that far exceeds any competitive AOP system. This is a game changer in disinfection, oxidation of organic and non-organic contaminants, destruction of biofilm and optimizing water clarity. AOP also dramatically reduces chlorinated by-products such as chloramines.

CMP Commercial AOP systems:

  • Have a small footprint when compared to most UV systems
  • Simple to install
  • Provide superior oxidation and sanitizer capability.

AOP is compatible with all traditional sanitizers. These systems are cost-effective to operate and maintain. DEL AOP Pro Systems are NSF certified for Supplemental Disinfection of Pools and Spas. This NSF supplemental rating is key to certifying effectiveness as a sanitizer.

  • Certified to NSF/ANSI Standard 50 as a Supplemental Sanitizer
  • Typical System Cost 50% Less than a Properly Sized Ozone System
  • Simple, Economical Annual Service Requirements
Features

Through the combination of Corona Discharge Technology, Germicidal UV Light, and Advanced Plasma Gap technology, the AOP lineup provides Advanced Oxidation Process in truly robust units.

  • Destroys 99.9% of Harmful Contaminants
  • Oxidizes¬†Cryptosporidium parvum,¬†Giardia, and Other Chlorine Resistant Microorganisms
  • Reduces Chemical Demand
  • Increases Effectiveness of Residual Sanitizers
  • Eliminates Chemical Odors, Irritation, and Damage to Pool System



CLICK HERE TO LEARN MORE ABOUT AOP PRO TECHNOLOGY

Specifications
Flow Rate

50 GPM, 100 GPM, 200 GPM, 350 GPM, 500 GPM

Inlet/ Outlet

2 in, 3 in, 4 in, 6 in

UV Reactor Quantity

1, 2, 4, 8, 10

UV Bulb Quantity

2, 4, 8, 16, 20

Ozone Requirement (gr/hr)

1.1 gr/hr, 2 gr/hr, 4.5 gr/hr, 7.9 gr/hr, 11.4 gr/hr

Ozone Cell Quantity

1, 2

Oxygen Supply

Ambient Air, O2 Concentrator

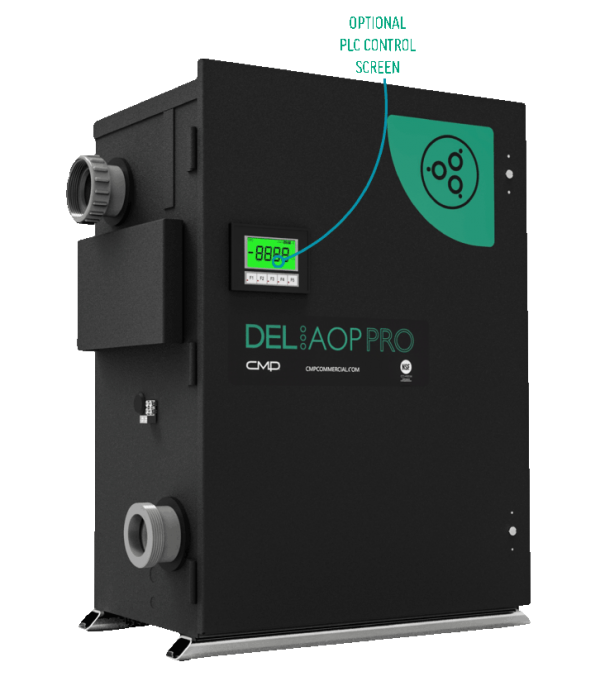

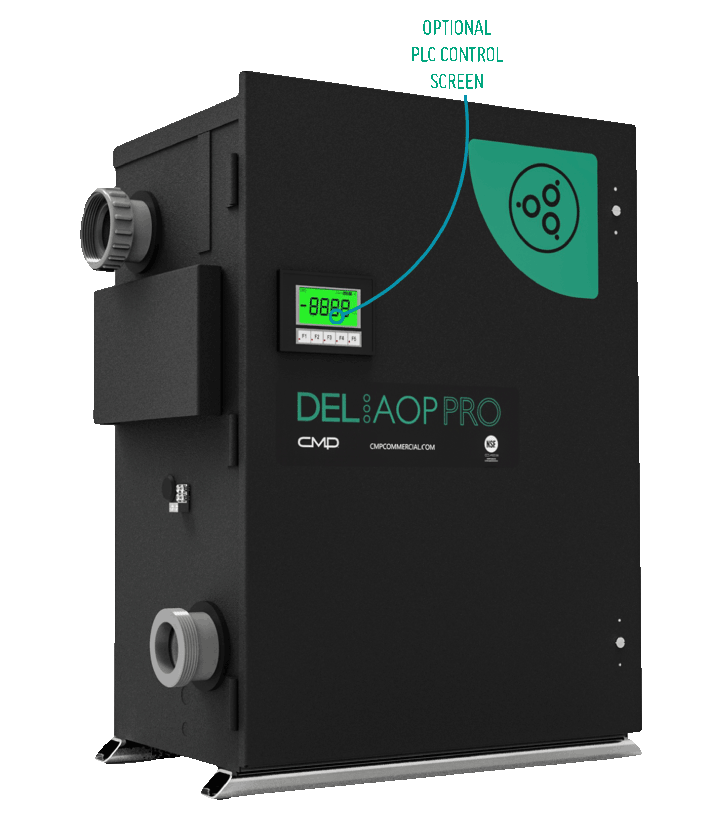

PLC Control

Yes, No

Contact Tank

Standard

Off-Gas Management System

Standard

Voltage

115 volt, 230 volt

Amp

3.4 A, 3.6 A, 4.8 A, 5.8 A, 7.1 A, 12 A, 13.8 A

Power Phase

Single

Technical Details
  • Booster pump not included with booster pump plumbing. Must be supplied separately.
  • AOP Units are designed for pools that are in compliance with the U.S. Model Aquatic Health Code (MAHC). Installed flow rates must not exceed listed flow rates to maintain NSF product listing as well as ensuring proper microbial performance.

Product Design

The AOP Pro is designed for consistent, reliable applications.

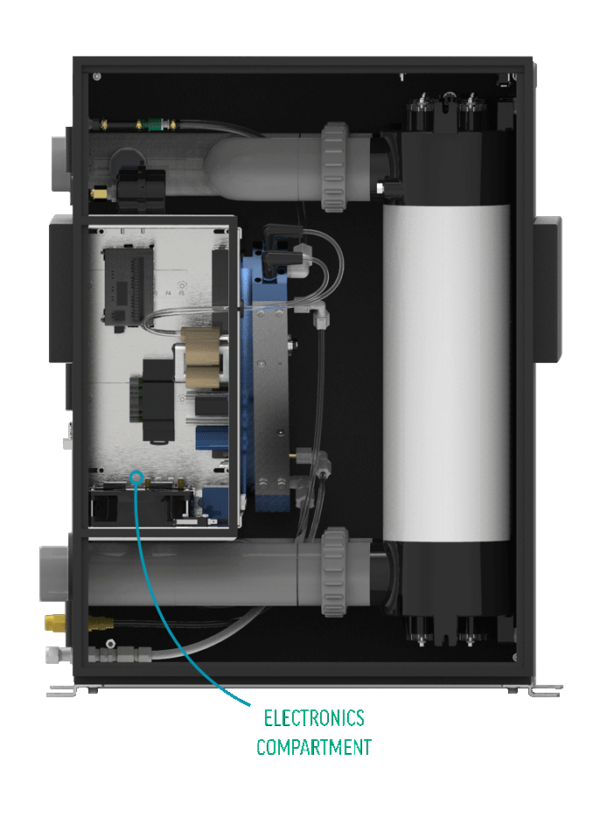

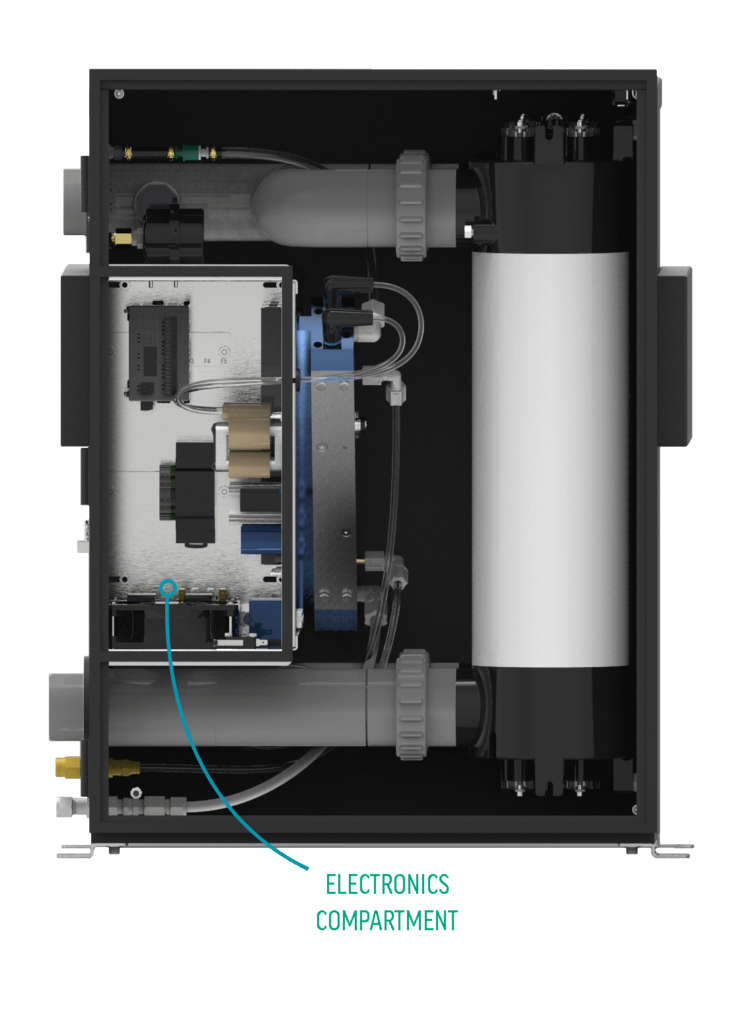

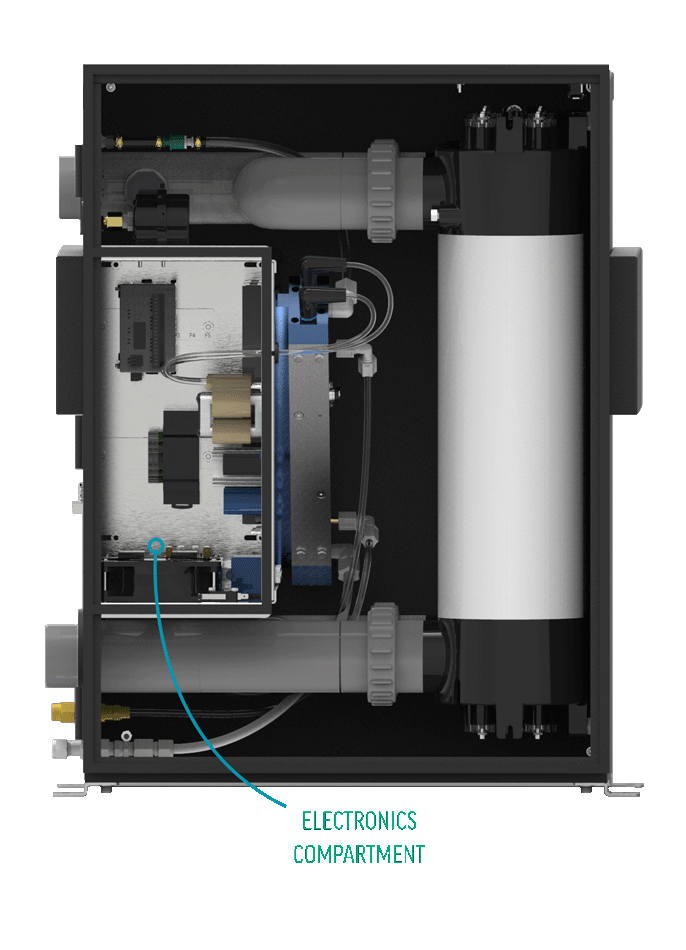

  • All electronics are internal in a single compartment

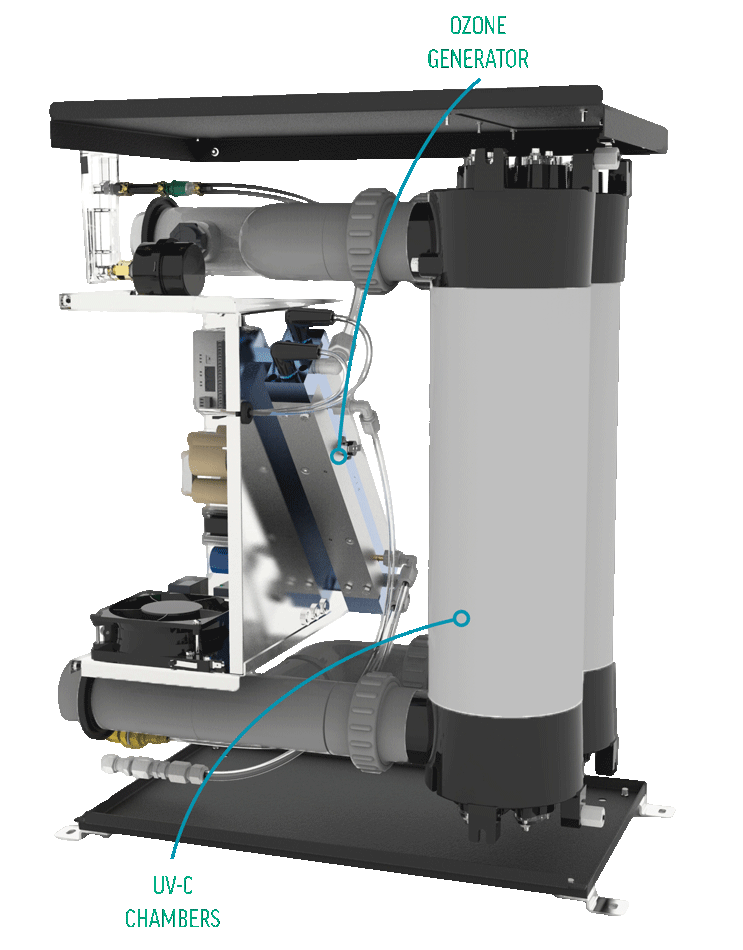

  • UV-C and Ozone Cells are inside the unit
  • 200 Class and above have integrated O2 Concentrators
  • Completely self contained with integrated I/O with unions
  • Easy access to all replaceable components
  • SCH 80 Unions and Pipes
