BACK

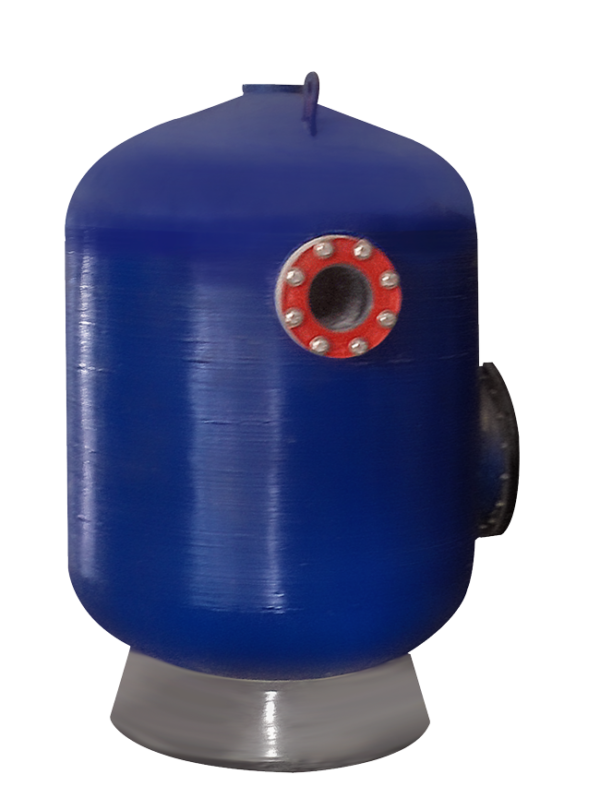

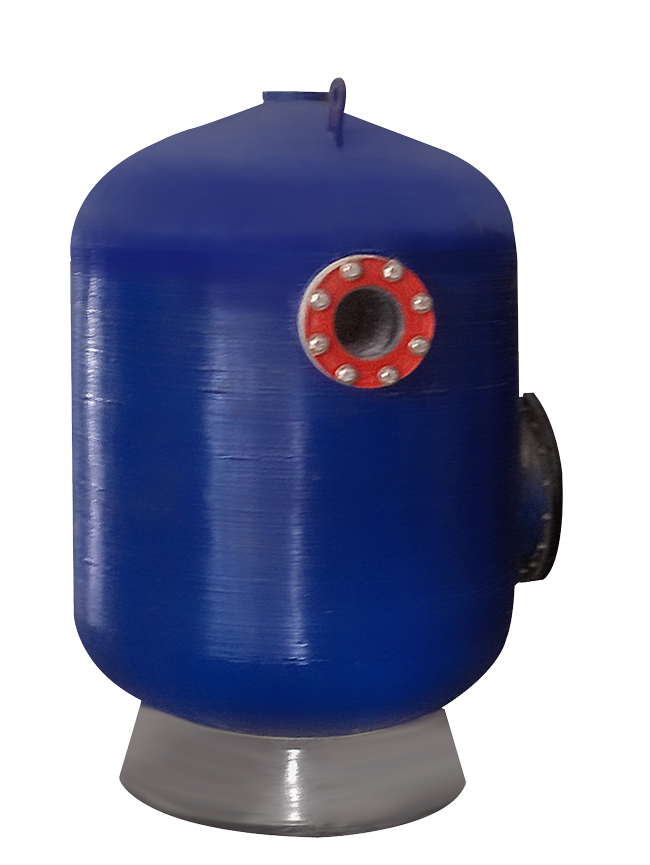

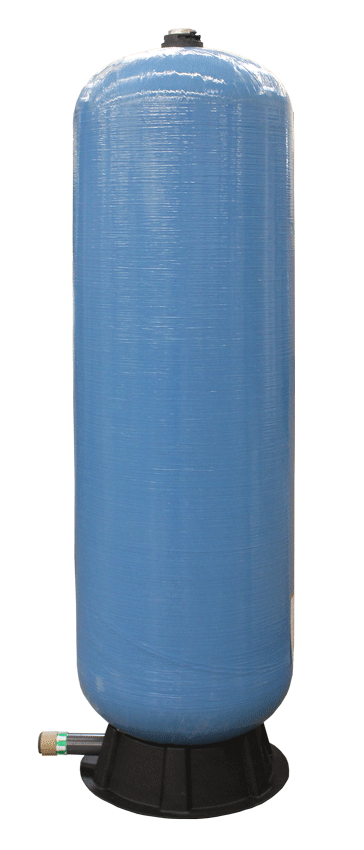

Contact Tanks

Ozone resistant Polyethylene (PE) lined Fiberglass Reinforced Plastic (FRP) retention tank that provides contact time and proper degas of undissolved O2 and O3 . Internal baffles (on 200 gallons and larger) for support and efficient fluid flow direction and degassing.


9-1036-01, 7-CT-40, 7-CT-80, 7-CT-120, 7-CT-0150-01, 7-CT-0200, 7-CT-0200-01, 7-CT-0205-01, 7-CT-0400, 7-CT-0400-01, 7-CT-0600, 7-CT-0600-01, 7-CT-0800, 7-CT-0800-01, 7-CT-1000, 7-CT-1200, 7-CT-1200-01





Features
  • 40 – 1200 Gallon Options
  • 40 – 120 Gallon Tanks are PE Lined
  • Fiberglass Reinforced Plastic
  • NSF Listed



CLICK HERE TO LEARN MORE ABOUT OZONE TECHNOLOGY

Specifications
Compatibility

G-Class- CD 2/ 5/ 7, G-Class- CD 15/ 25, G-Class- CD-45, HECD- 65/ 130, P-Class- 100/ 200, Q-Class- CD 250F/ 400F/ 800F/ 1200F

Enclosure Type

Fiberglass Reinforced Plastic

Tank Size

40 Gallon Tank, 80 Gallon Tank, 120 Gallon Tank, 150 Gallon Tank, 200 Gallon Tank, 205 Gallon Tank, 400 Gallon Tank, 600 Gallon Tank, 800 Gallon Tank, 1000 Gallon Tank, 1200 Gallon Tank

Contact Tank

Tank Assembly used in MS Packages, Tank with 1.25in Bottom Connections, Tank with 3in Bottom Connections, Tank with Internal Baffle, 36in Dia x 69in Height, Tank with Internal Baffle, 36in Dia x 117in Height, Tank with Internal Baffle, 42in Dia x 57in Height, Tank with Internal Baffle, 47in Dia x 74in Height, Tank with Internal Baffle, 49n Dia x 104in Height, Tank with Internal Baffle, 55in Dia x 80in Height, Tank with Internal Baffle, 55in Dia x 101in Height, Tank with Internal Baffle, 63in Dia x 82in Height, Tank with Internal Baffle, 63in Dia x 98in Height, Tank with Internal Baffle, 63in Dia x 99in Height, Tank with Internal Baffle, 79in Dia x 86in Height, Tank with No Internals, 4in Flange
